Jadak

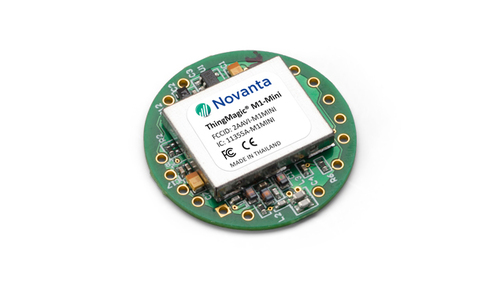

M1 Mini RFID Reader

ThingMagic M1-Mini is the world’s smallest, self-contained, multi-protocol embedded HF RFID reader. Designed to enable any device with RFID reader technology, this low power, high performance 13.56 MHz Original Equipment Manufacturer (OEM) module is capable of reading to transponders based on ISO 15693 and ISO 14443A2 air interface protocols. It also writes to ISO 15693 tags. ThingMagic M1-Mini features an on-board antenna and the ability to attach a standard 50-ohm external antenna for improved read-range. With three available interface options, ThingMagic M1-Mini provides communication to embedded host systems. Its on-board power regulator circuit allows operation from 3.2-6V. The power management intelligence allows current to be set as low as 50 μA (Sleep Mode), making it ideal for use in battery operated devices. Further power efficiency is gained by use of the Start-Up command. Software adjustable baud rates from 4,800 to 57,600 bits per second offer choices to accommodate host processor requirements. With the variety of host interfaces, supply voltages, and configurable parameters, the ThingMagic M1-Mini is easy to embed.

Manufacturer

Jadak

Product sheet

M1_Mini.pdf

Jadak


Jadak er en teknologivirksomhed, der specialiserer sig i løsninger til identifikation og dataindsamling inden for industrielle og medicinske anvendelser. Virksomheden udvikler og producerer produkter som RFID-moduler, stregkodescannere, maskinsynssystemer samt løsninger til farve- og lysmåling. Disse produkter anvendes til sporing, inspektion og dokumentation i realtid inden for bl.a. produktion, logistik og sundhedssektoren.

Gennem tilpassede løsninger hjælper Jadak OEM-producenter med at integrere avanceret identifikationsteknologi i deres egne produkter. Virksomhedens ekspertise inden for RFID og maskinsyn muliggør udvikling af effektive og pålidelige automatiserings- og kvalitetskontrolløsninger.

Læs mere: Jadak Technologies
