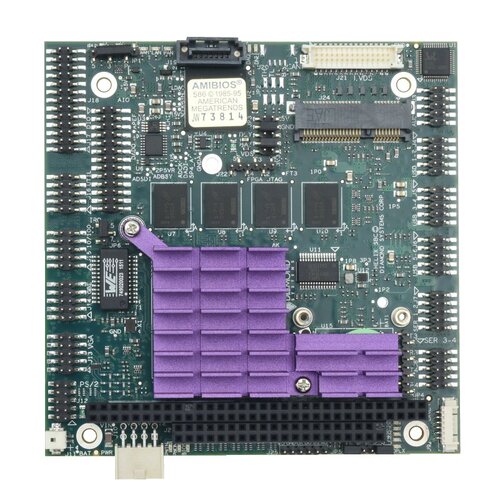

Helix PC/104 SBC with Vortex86DX3 1GHz CPU and Data Acquisition

The HELIX family of PC/104 SBCs combines mid-range CPU performance, standard PC I/O, and on-board data acquisition circuitry in a compact size and at a competitive price. Available PC I/O includes 3 or 6 USB 2.0 (model dependent), 4 serial ports (2 RS-232/422/485 and 2 RS-232), 1 10/100Mbps Ethernet, 1 Gigabit Ethernet, and a SATA port. The optional data acquisition circuit includes 16 16-bit analog inputs, 4 16-bit analog outputs and 27 digital I/O lines configurable as counter/timers and pulse width modulators. Helix supports stackable I/O expansion with PC/104 I/O modules, and it also has a combination mSATA/PCIe MiniCard socket for additional I/O expansion and mass storage. I/O modules featuring WiFi, Ethernet, analog I/O, digital I/O, and CAN are available in the PCIe MiniCard form factor, providing compact expandability without increasing the total height of the system. Helix runs Linux and Windows Embedded Standard 7. Both Linux and Windows Embedded 7 Software Development Kits are available with bootable images and drivers to get you started on your design project right out of the box. Note: Board does not support booting from mSATA port. The Helix SBC was designed with rugged applications in mind. With an operating temperature of -40°C to +85°C, soldered on-board memory, and thicker PCB, Helix is an excellent choice for vehicle and other harsh environment applications. A 9-36VDC power supply option is also available for easier integration into industrial or military systems.
