BOXER-6645-ADS Box PC
Aaeon
Fanless Embedded Box PC with Socket Type 12th Generation Intel® Processor
.jpeg)
Moxa

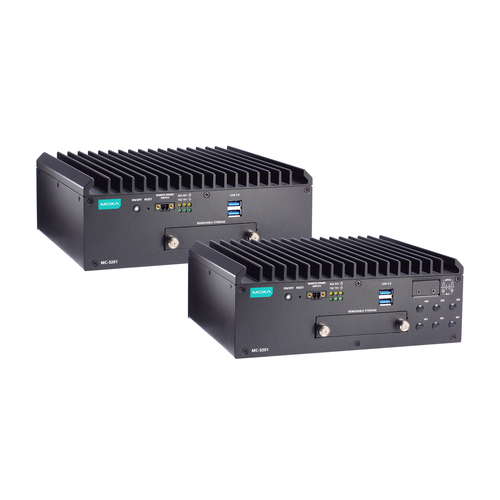

MC-3201 Series
The MC-3201 Series computers are built around a 11th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 2 DisplayPort interfaces, 2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports. The computers are also equipped with a 2.5-inch SSD/HDD slot and a built-in TPM 2.0 module.
Compliance with the DNV, IEC-60945, and IACS E10 standards ensures the MC-3201 delivers stable and reliable system operations for marine and IIoT applications. These certifications are issued to indicate the suitability of product for use in marine applications.
Features and Benefits
- 11th Gen Intel® Core™ processor (Tiger Lake U)
- 2 built-in DDR4 memory slots; total capacity up to 32 GB
- Variety of interfaces: 2 serial ports, 4 Giga LAN ports, 2 USB 3.1 (type A) ports, and 4 USB 2.0 (type A) ports
- Built-in TPM 2.0 module
- Complies with DNV, IEC-60945, and IACS E10 standards
Moxa
Moxa er en global leverandør af industrielle netværks-, computer- og automationsløsninger, der muliggør forbindelser til Industrial Internet of Things (IIoT). Virksomheden tilbyder et omfattende udvalg af produkter inden for industriel netværksinfrastruktur, edge-forbindelser og industriel databehandling.
Inden for netværksinfrastruktur tilbyder Moxa Ethernet-switche i mange varianter – uadministrerede, administrerede, PoE- og rackmonterede – samt løsninger til jernbanesektoren. Desuden leveres sikre routere, trådløse access points, mobile gateways/routere, mediekonvertere, netværkshåndteringssoftware, fjernadgang og cybersikkerhedsenheder.
Til edge-forbindelse tilbyder Moxa serielle enhedsservere, konvertere, gateway-protokoller, USB-til-seriel konvertere/hubs, multiport serielle kort, controllere og I/O-enheder, OPC UA-software samt IP-kameraer og videoservere.
Inden for industriel computeranvendelse omfatter deres produkter x86- og ARM-baserede computere, panel-PC’er, IIoT-gateways og systemsoftware.
Moxas løsninger anvendes i mange brancher som produktionsautomatisering, intelligente jernbaner, smarte elnet, transport, olie og gas, marine og minedrift.
Læs mere: moxa
-
-
BOXER-6841M For AI@Edge and machine vision applications
Aaeon
Support 6th / 7th Core-i desktop processor, Max 65W Support Xeon® server-grade processor, Max 73W Intel® H110 PCH, C236 PCH Easy Installation design for expand slot Support PCIe [x16] x1, PCIe [x8]x2, PCIe [x1] x1 Support up to max 250W Graphic Card Fanless System or System Fan with PWM function2 pin Remote Power on/off connector Power ON/OFF Switch x 1 HDMI 1.4b x2 Audio x 2 (MIC-in, Line-out) USB 3.0 x 4 DB-9 x 1 for RS-232/422/485 3 pin DC Power input x 1 (+, - , GND)
-
tBOX520 Fanless Embedded System
Axiomtek
Fanless Embedded System with 12th Gen Intel® Core™ i7/i5/i3 Processor for Railway
-
TANK-870-Q170 Fanless Embedded Computer. High-Performance 6th/7th Generation Intel® Core™ Processor
IEI
● 6th/7th Gen Intel® Core™ processor platform with Intel® Q170 chipset and DDR4 memory ● Triple independent display with high resolution support ● Rich high-speed I/O interfaces on one side for easy installation ● On-board internal power connector for providing power to add-on cards ● Great flexibility for hardware expansionUSB 3.1 Gen 1 (5Gb/s) 4 USB 2.0 4 Ethernet 2 x RJ-45 LAN1 (iRIS): Intel® I210 PCIe controller LAN2: Intel® I219LM PCIe controller COM Port 4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection) 2 x RS-232/422/485 (DB-9) Digital I/O 8 bit Digital I/O, 4 bit input / 4 bit output Display 1 x VGA, 1 x HDMI+DP, 1 x iDP (optional) Resolution 1 x VGA (Up to 1920 x 1200@60Hz) 1 x HDMI/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz) Audio 1 x Line-out ; 1 x Mic-in Wireless 1 x 802.11a/b/g/n/ac (optional)
