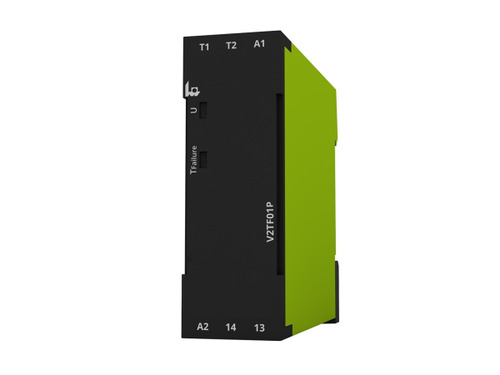

Temperature monitor, V2TF01

​The V2TF01P is a temperature monitoring relay designed to protect motors and other equipment from overheating by utilizing PTC thermistors. Operating with a supply voltage range of 24 to 240V AC/DC, it complies with DIN 44081/44082 standards and supports up to six PTC sensors connected in series. The relay features a fixed tripping threshold, switching off when the cumulative resistance of the PTC circuit exceeds 3.6 kΩ and resetting when it falls below 1.6 kΩ. Equipped with a normally open contact rated at 250V AC and 8A, the V2TF01P ensures reliable switching performance. Its compact 22.5mm DIN-rail mountable design allows for efficient installation in control panels. LED indicators provide clear visual feedback: a green LED indicates supply voltage presence, while a red LED signals temperature fault conditions. Engineered for precision and durability, the V2TF01P is an ideal solution for safeguarding motors and other heat-sensitive equipment against overtemperature conditions. - Monitoring relays VEO series - Motor temperature monitoring (PTC) - Short circuit detection - supply voltage 24-240V AC/DC - 1 changeover contact - Push-in terminal - width 22,5 mm - compact industrial design
