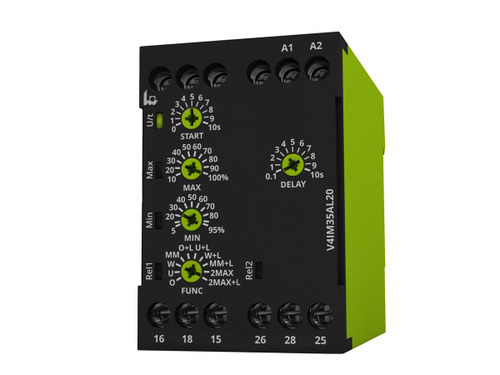

Current Monitor, V4IM35AL20 24-240V AC/DC

​The V4IM35AL20 is a single-phase current monitoring relay designed to ensure the stability and safety of electrical systems by monitoring current levels up to 35A AC/DC. Operating with a supply voltage range of 24 to 240V AC/DC, it offers multiple monitoring functions, including overcurrent, undercurrent, and window monitoring, providing comprehensive protection against current anomalies. The relay features adjustable thresholds for both minimum and maximum current levels, allowing precise customization to specific application requirements. An adjustable tripping delay ranging from 0.1 to 10 seconds helps prevent nuisance tripping due to transient conditions. Equipped with two changeover contacts rated at 250V AC and 5A, the V4IM35AL20 ensures reliable switching performance. Its compact 45mm DIN-rail mountable design facilitates straightforward integration into control panels. LED indicators provide clear visual feedback: a green LED indicates the presence of supply voltage, a red LED signals fault conditions based on set parameters, and a yellow LED shows the status of the output relay. Engineered for precision and durability, the V4IM35AL20 is an ideal solution for protecting sensitive equipment from current irregularities in various industrial and commercial applications. - Monitoring relays VEO series - Current monitoring 1-phase - Multifunction - Measuring range 35A AC/DC - Through-connected transformer integrated - Supply voltage 24 - 240V AC/DC - 2 changeover contacts - width 45 mm
