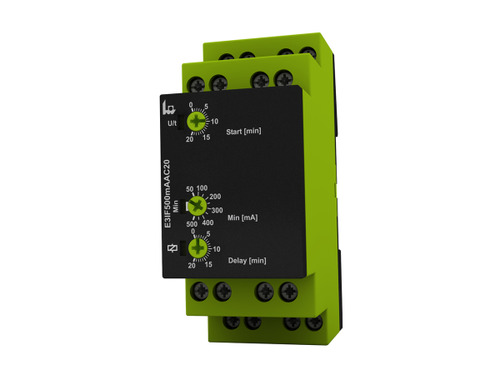

Current Monitor, E3IF500MAAC20 230V AC

​The E3IF500mAAC20 is a single-phase AC current monitoring relay designed to detect undercurrent conditions, ensuring the protection and efficiency of electrical systems. Operating with a supply voltage of 230V AC, it monitors currents within a range of 50mA to 500mA AC. The relay features adjustable start-up suppression and tripping delays, each configurable from 0 seconds to 20 minutes, allowing for tailored response times to specific application needs. Equipped with two changeover contacts rated at 250V AC and 5A, the E3IF500mAAC20 offers reliable switching capabilities. Its compact 35mm DIN-rail mountable design facilitates efficient installation in control panels. Clear LED indicators provide real-time status updates: a green LED signals supply voltage presence and flashes during timing periods, a red LED indicates threshold violations and their corresponding tripping delays, and a yellow LED shows the relay output status. Engineered for precision and durability, the E3IF500mAAC20 is an ideal solution for safeguarding equipment against undercurrent conditions in various industrial and commercial settings. - Monitoring relay series ENYA - Current monitoring 1-phase - Undercurrent monitoring - Measuring range 16A AC - Switching threshold adjustable (50 - 500mA) - Supply voltage 230V AC - 2 changeover contacts - width 35mm - Installation type
